Environmental Gas Inspection Modules
-

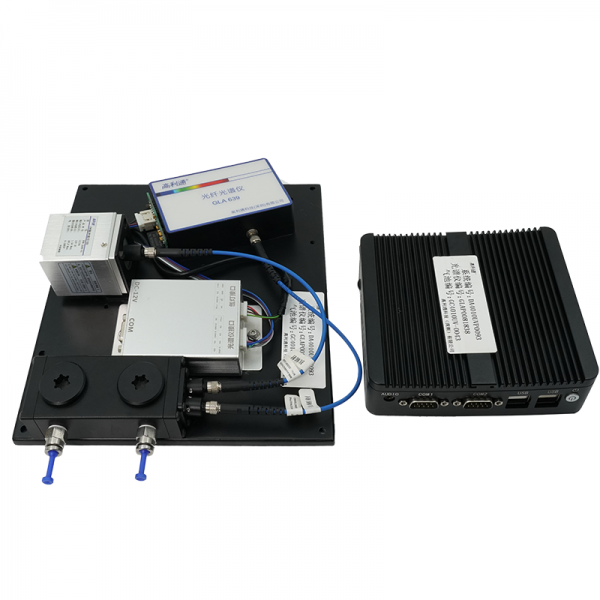

The portable environmental gas monitoring module DOAS-4010UV includes a fiber spectrometer, a light source (xenon lamp or deuterium lamp), DOAS algorithm and a PC.
-
●The module includes a fiber spectrometer, an optical gas cell, a light source (xenon lamp or deuterium lamp) etc., DOAS algorithm and PC etc.
●High resolution.
●Optional spectral range.
●Optional light source.
●Optional absorption length.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
●Easy to upgrade due to modular design.
●Easy to assemble due to compact structure.
-
Items Specifications Remarks Light Path 0.6 or 1.1m Optional upon request Light Source Xenon lamp or deuterium lamp Optional upon request Wavelength Range 190-380/190-480nm Optional upon request Communication USB or RS232 Gas Connector Ø6mm Material of Main Part Aluminum with coating Power Supply DC12V/3A (spectrometer and xenon lamp),
DC12V/5A（industrial computer），
verage power 12ＷLamp Cooling Heatsink with a fan For deuterium lamp Weight ~3Kg Dimension 222mmx10mmx55mm
-
●For measuring and analyzing gases having UV band absorption, such as environmental gas inspection, industrial process monitoring and CEMS etc.
